Rail Anchors

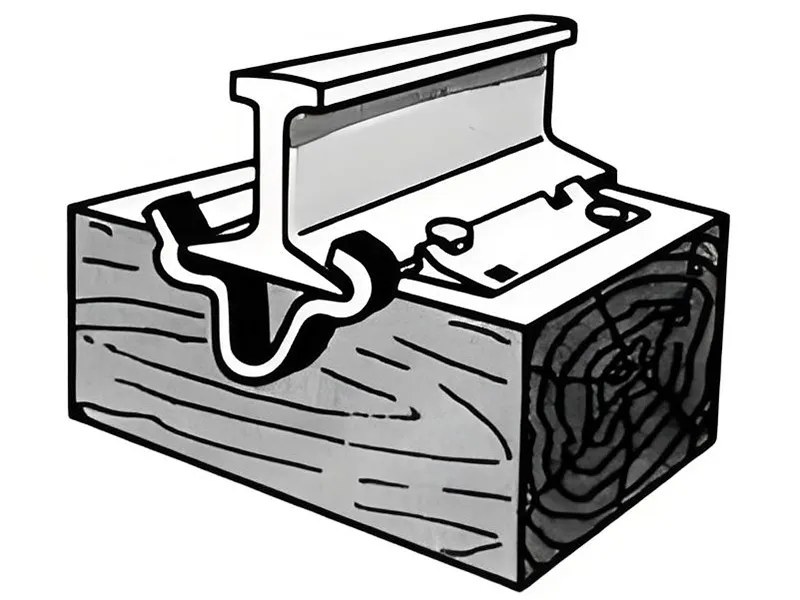

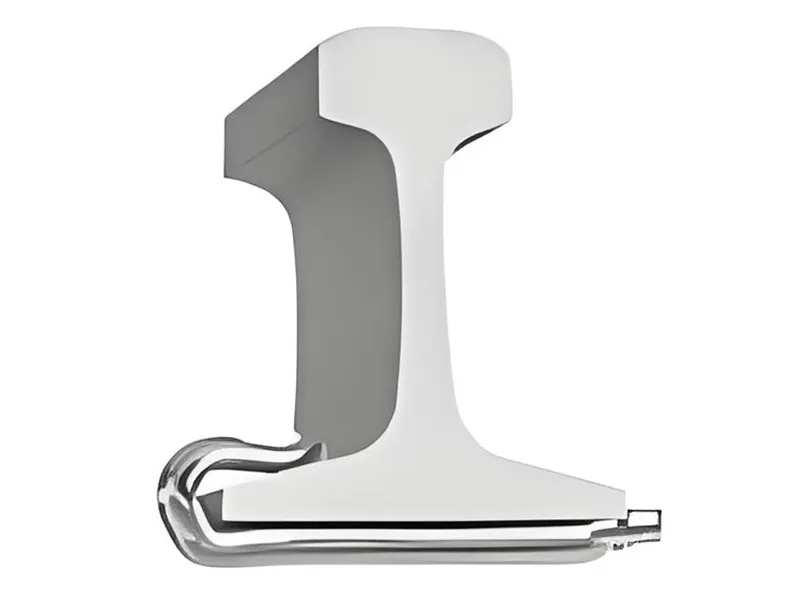

SUYU manufactures different types of rail anchor products. The anchors are used where the fastenings system requires an extra creep resisting arrangement. There are various shapes of the anchor which is made of rolled bars of various sections. When driven in the rail, the railway anchor grips the rail firmly and when set against sleepers, resists longitudinal movement of the rails caused by passing trains.

The quality parameters of our rail anchor are as per with the International Standards and all are readily available in a considerable quantity at all times.

Rail Anchors

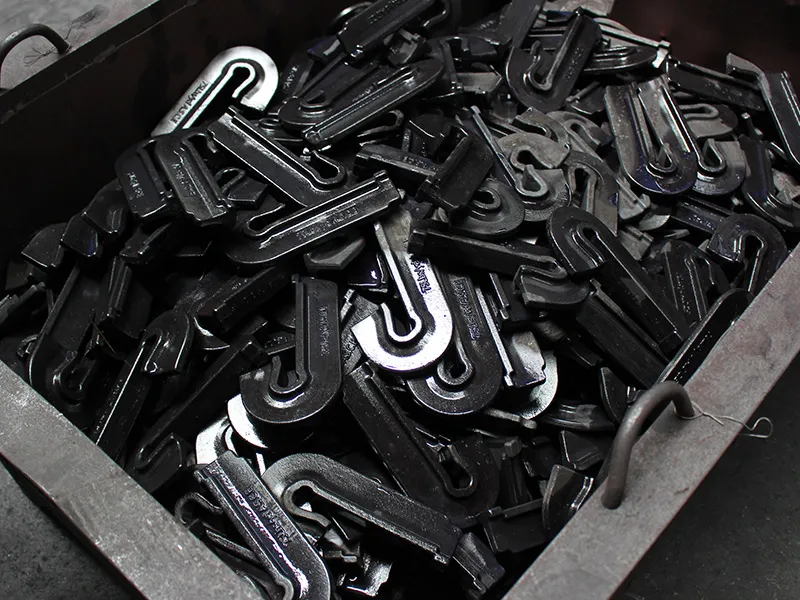

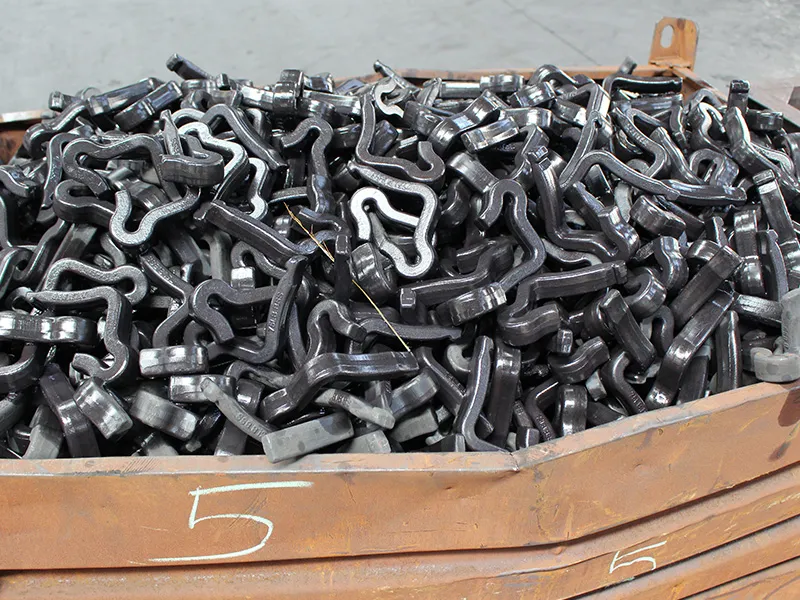

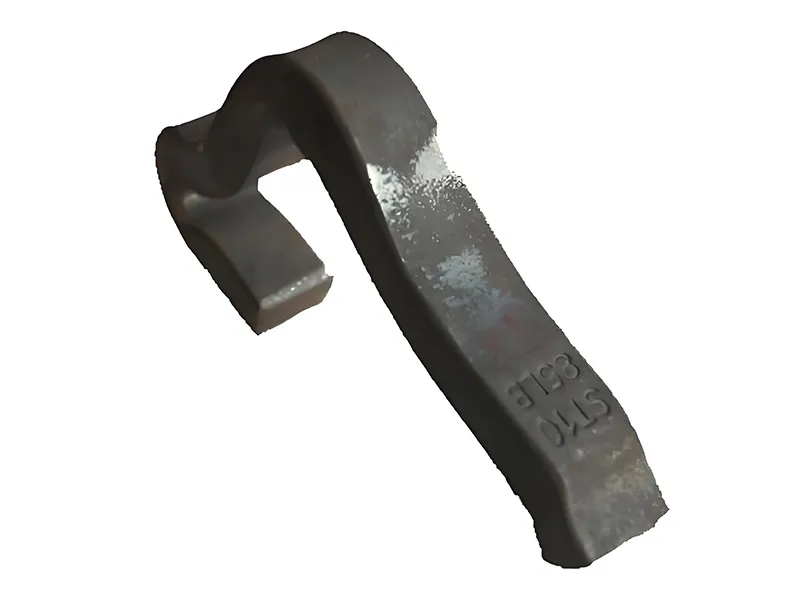

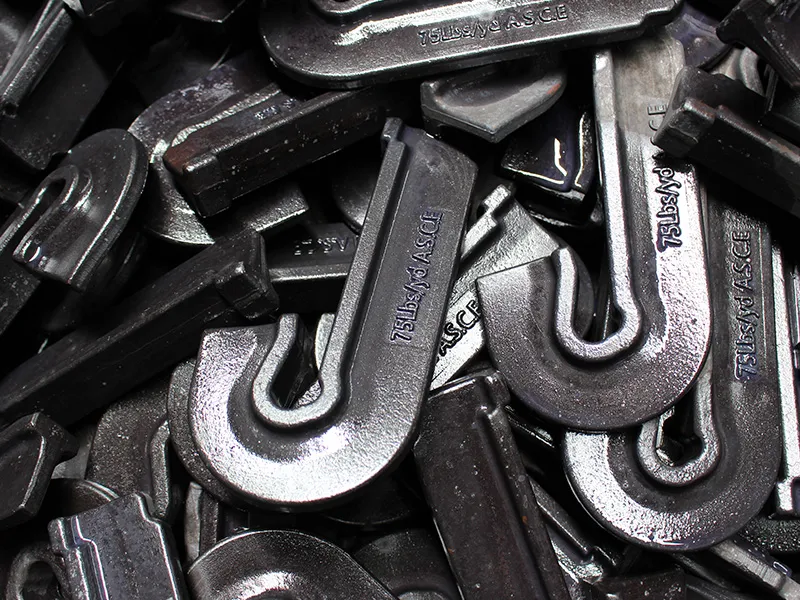

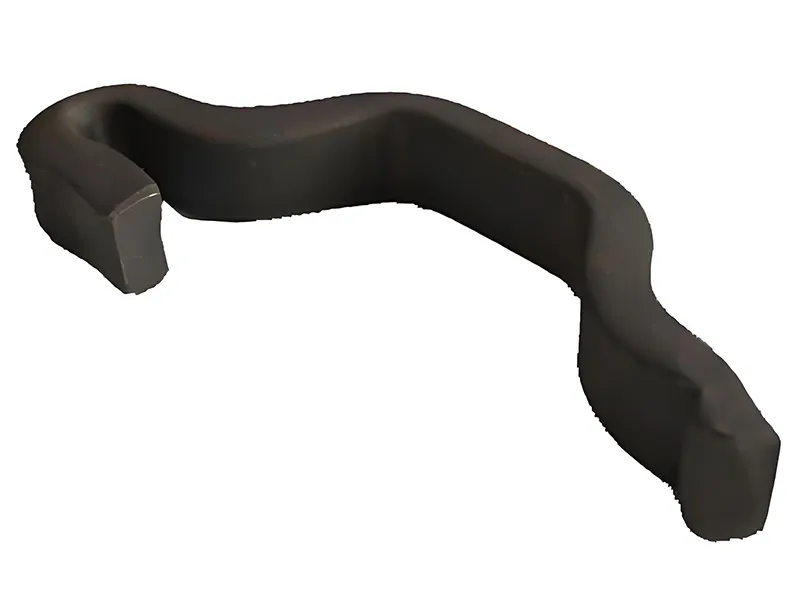

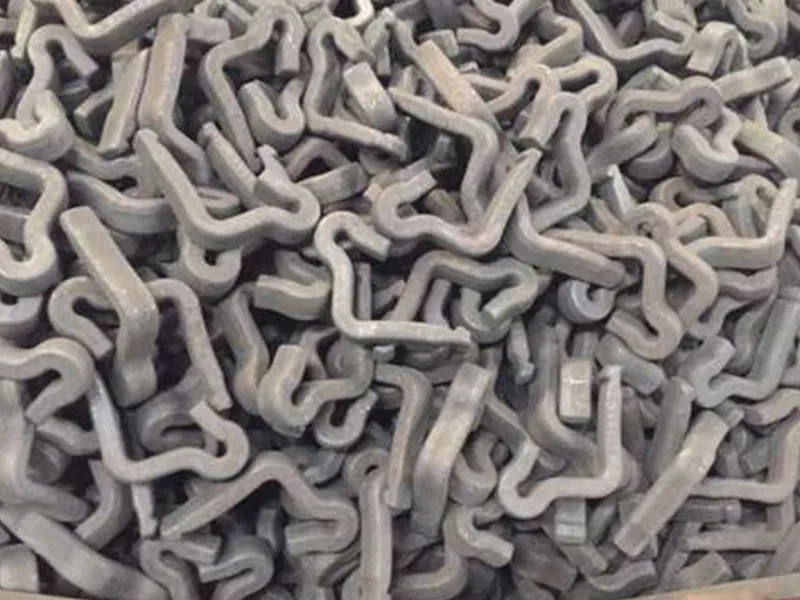

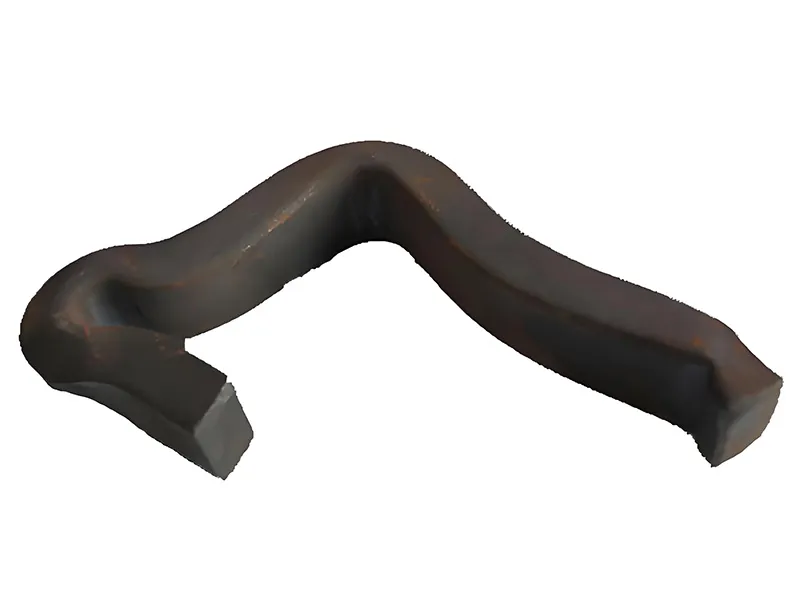

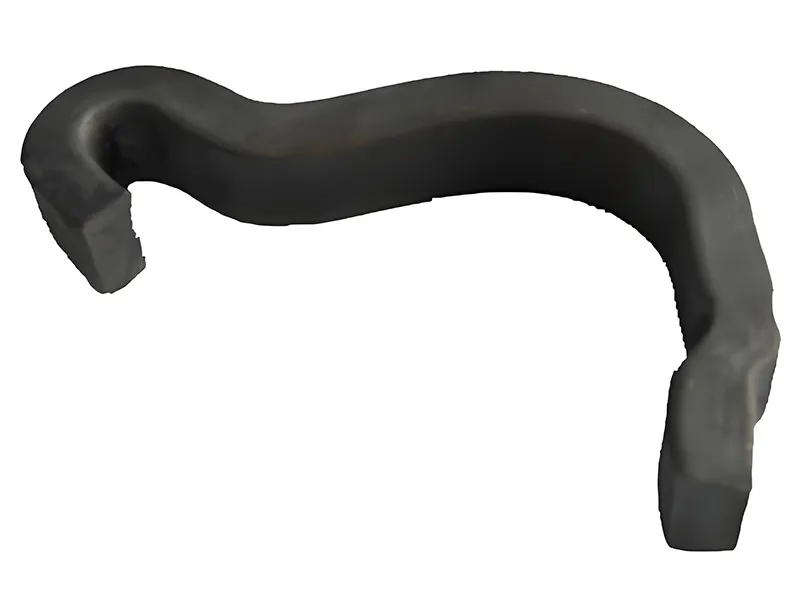

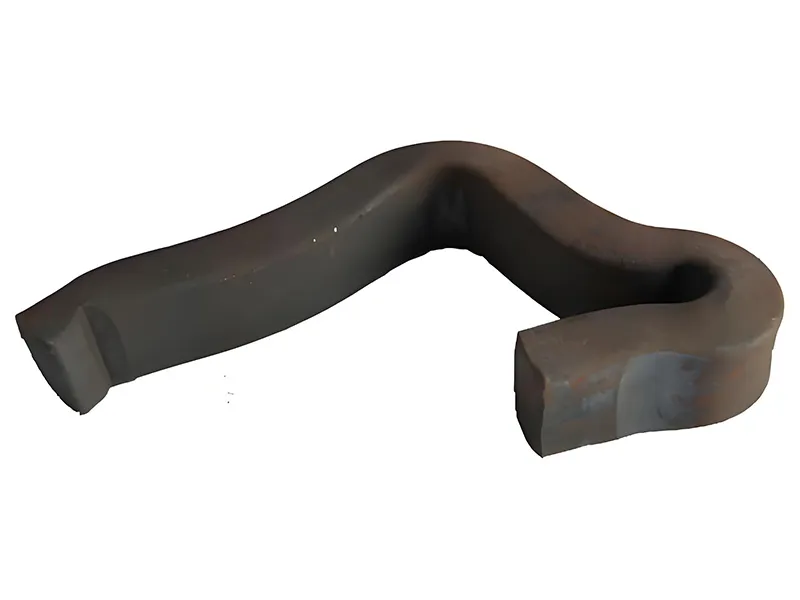

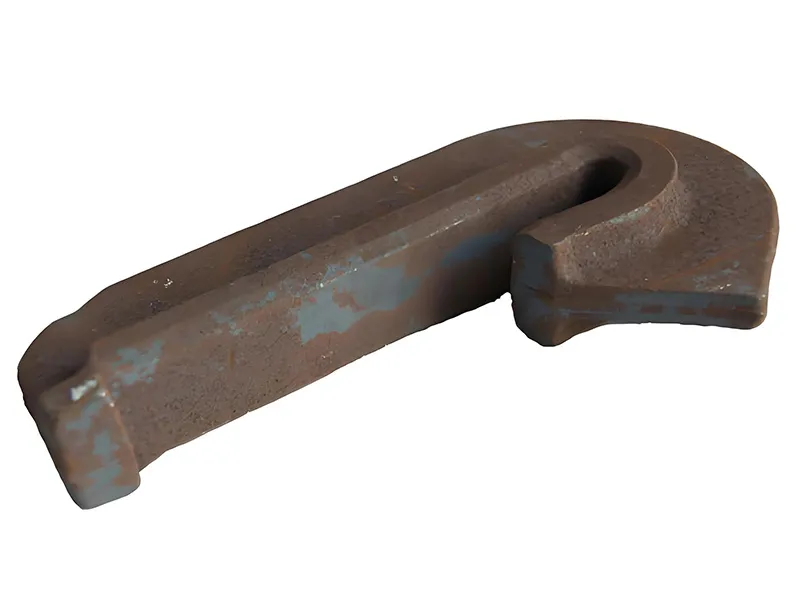

1. Rail anchor is manufactured in one-piece construction for spring steel or equal, heat-treated and designed to eliminate creepage of track. The rail anchors provide a large bearing surface against both rail base and tie, avoiding undo cutting and wear, thus prolonging the life of wooden ties. The rail anchors are used in 50Kg, 85Kg, 90/91LB, 115RE /136RE, UIC54 and UIC60 rail, and so on.

Technical Specifications of the Rail Anchor
Type Material Weight(g/pc)
50Kg 60Si2MnA 800
70LB 60Si2MnA 800
85LB 60Si2MnA 800
90/91LB 60Si2MnA 800
Rail Anchors

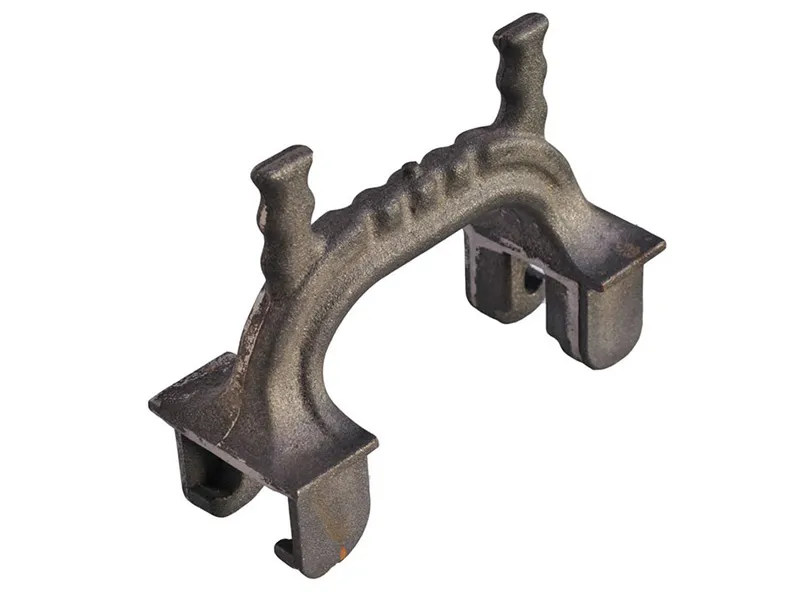

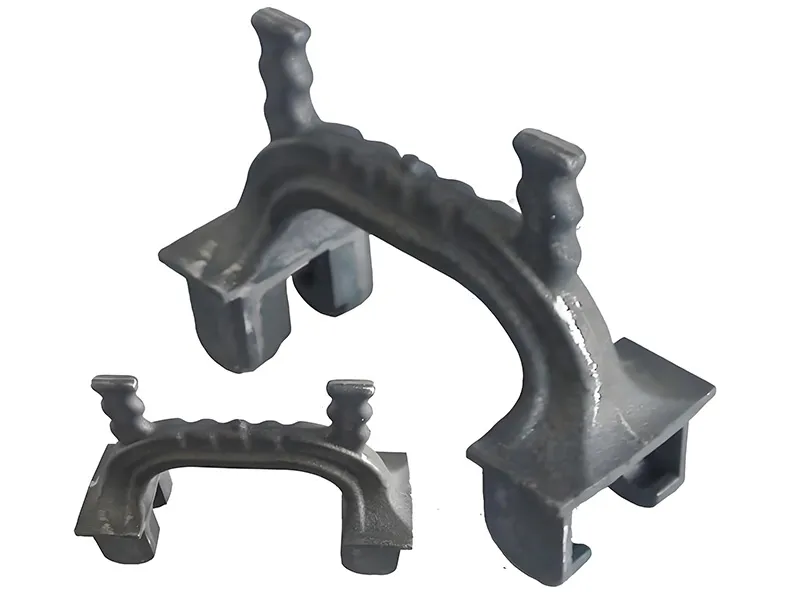

2. Russian rail anchor
The Russian rail anchor is a kind of casting product used in the construction of railway. It is made of QT400-15 materials. Its mechanical properties in the as-cast state are fully compliant to the TOCT 7293-85.

With our own R&D department, we have succeeded and continue to produce new rail anchor according to our customers' requests. If you are interested in railway materials and components, please contact us and we always offer the professional help to meet your needs.

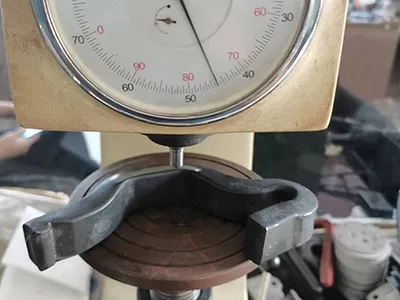

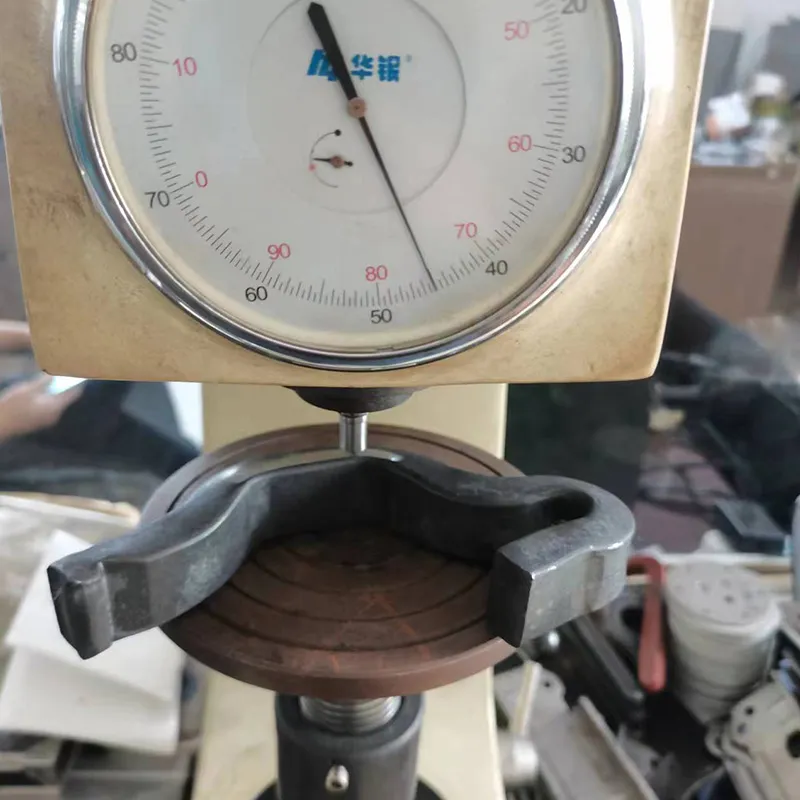

Adhering to our quality first policy, SUYU pays great attention to quality control management. We have been granted ISO9001-2008 certificates and have received the production license of China's Railway Ministry on railway products. We have a full set of inspection instruments to ensure all our rail anchor and other railway fasteners are of high quality and up to customers' requirements.

As a leading manufacturer of rail anchor based in China, SUYU also produces many other railway fasteners, such as track bolt, sleeper screw, rail joint bar, tie plate, rail clip, elastic rail clip, SKL tension clamp, rail shoulder, and so on.
